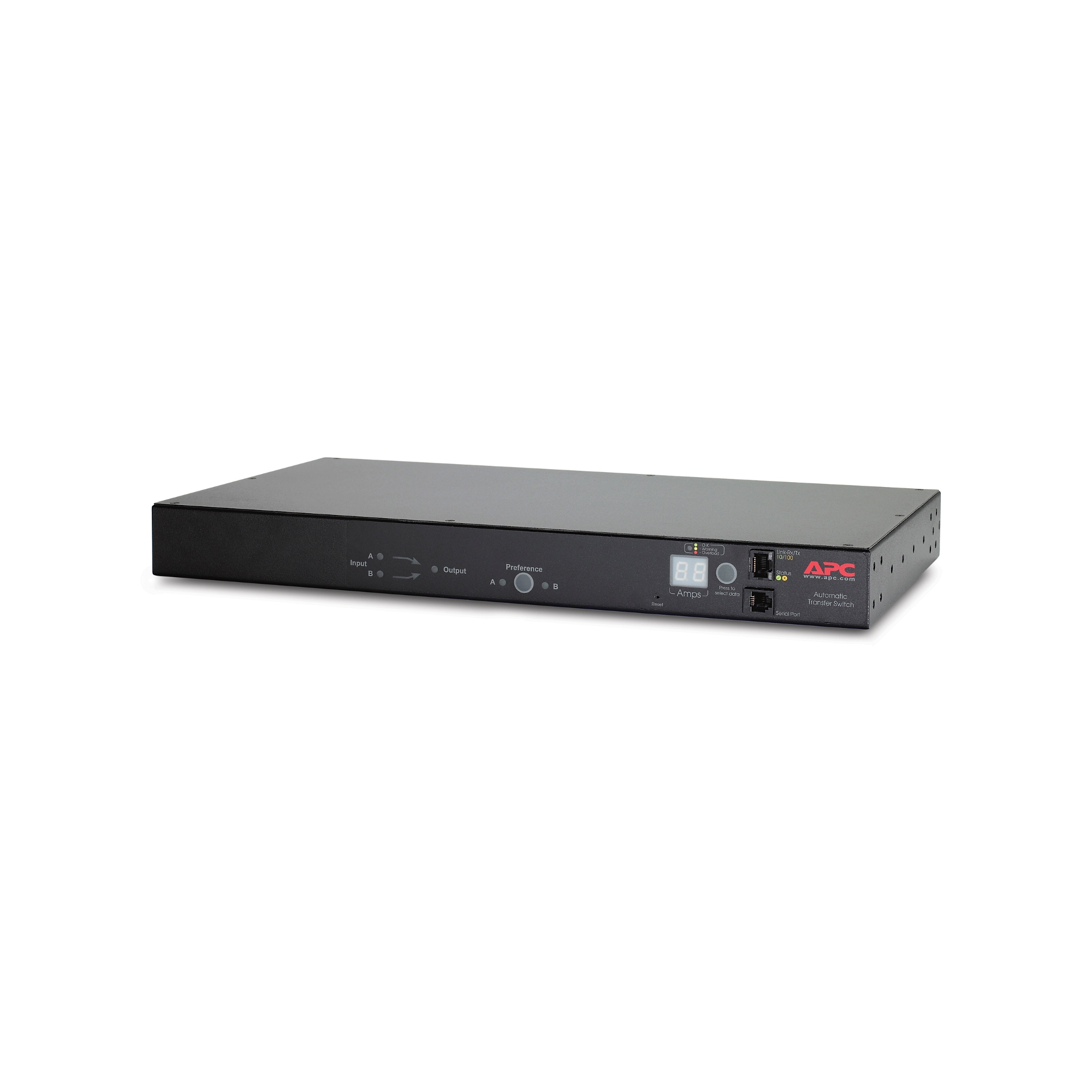

AP7723 - RACK ATS, 20A/208V, 16A/230V, C20 IN, (8) C13 (1) C19 OUT

APC Rack Mount Transfer Switch, Input: 200V, 208V, 230V,
Input connection type: IEC-320 C20
Output connections: 8 x IEC 320 C13 / 2 x C19
Display for local power monitoring


Output
Nominal Output Voltage: 230V
Overload Protection: No
Maximum Total Current Draw: 16
Output Connections: (1) IEC 320 C19 (Battery Backup) (8) IEC 320 C13 (Battery Backup)
Input
Nominal Input Voltage: 200V , 208V , 230V
Input frequency: 47 - 63 Hz
Input Connections: IEC-320 C20
Maximum Input Current: 20A
Maximum Line Current:20A
Physical
Rack Height: 1U
Weight:3.93kg
Color: Black
Environmental
Operating Environment: -5 - 45 °C
Operating Relative Humidity: 5 - 95 %
Operating Elevation: 0-3000meters
Storage Temperature: -25 - 65 °C
Storage Relative Humidity: 5 - 95 %
Storage Elevation: 0-15000meters
Conformance
Approvals: cUL Listed, CE, EN 55022 Class A, FCC Part 15 Class A, UL Listed
