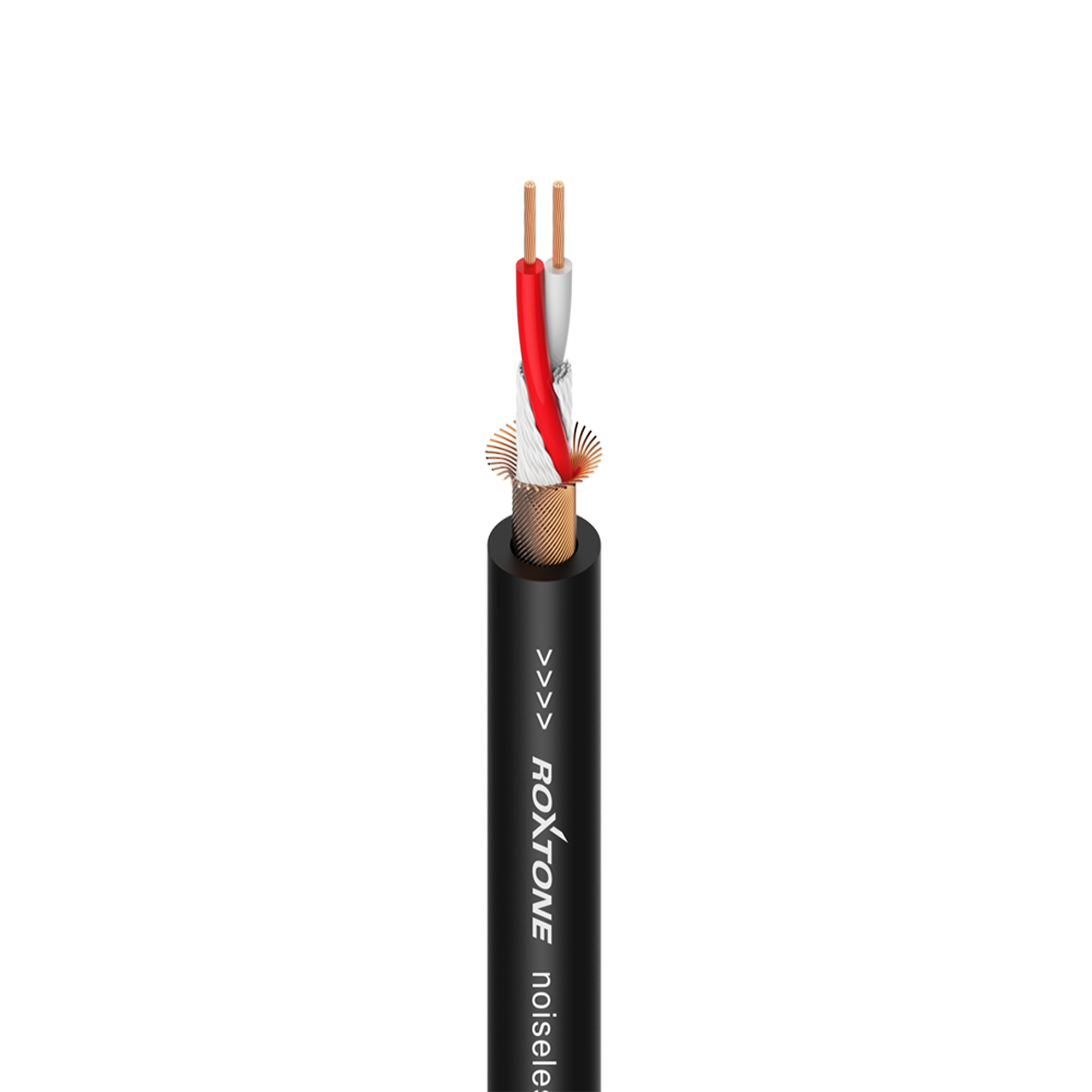

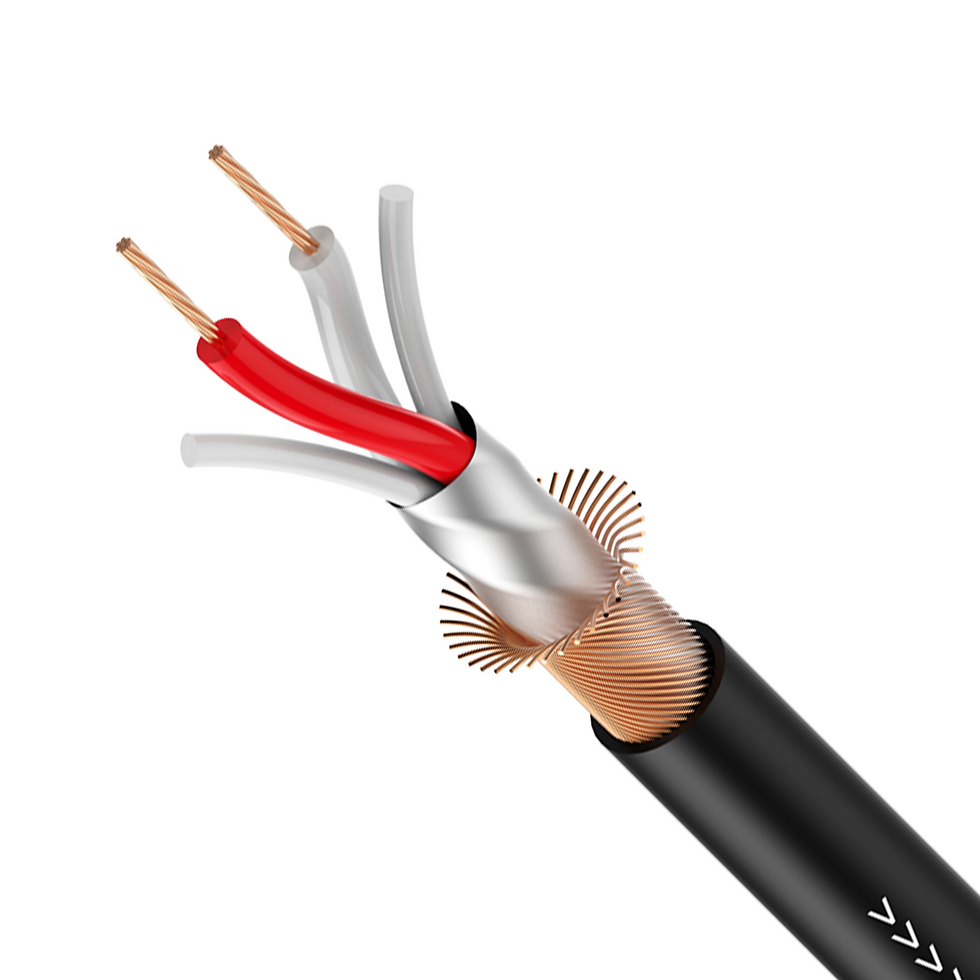

ROXTONE MC002

Fine stranded wire for high quality signal transmission
Very strong, with a thick soft PVC jacket
Good protection provided by tight copper spiral screen
Highly flexible, well suited for use with cable drums

Cable Color - Black
Technical information
Jacket, diameter - PVC 6.0 mm
AWG - 24
Number of internal conductors - 2 x 0.22 mm²
Copper wire for one conductor - 28 x 0.10 mm
Conductor insulation - PE 1.40 mm
Shielding - 80 x 0.10 mm copper spiral shield
Protection factor - 95%
Temperature range - min. -20°C
Temperature range - max. +70°C
Packaging - 100/300 m roll
Electrical Data
Capacity. condition/condition. For 1 m - 52 pF
Capacity. condition/shield. For 1 m - 106 pF
Cond. Resistance to 1 m - 80 mΩ
Shield. Resistance to 1 m - 30 mΩ
